6.a) F-910 Ready-to-Use Access Control System – Up to 13 ft / 4 m
$390.00
Complete Ready-to-Use F-910 Access Control System
This is not a bare reader. It is a complete preconfigured access control system package with an adjustable reading range of up to 13 ft / 4 m, a built-in dry-contact relay, power supply, mounting bracket and two authorized tags programmed before shipment.
🇺🇸 IN STOCK IN THE USA
Preconfigured, tested and ready for installation.
- Adjustable reading range up to 13 ft / 4 m
- Built-in normally open dry-contact relay
- No computer or Internet required for routine standalone access
- No separate controller required for basic standalone operation
- No mandatory monthly subscription
- Optional TCP/IP software-managed configuration
- Two authorized tags programmed before shipment

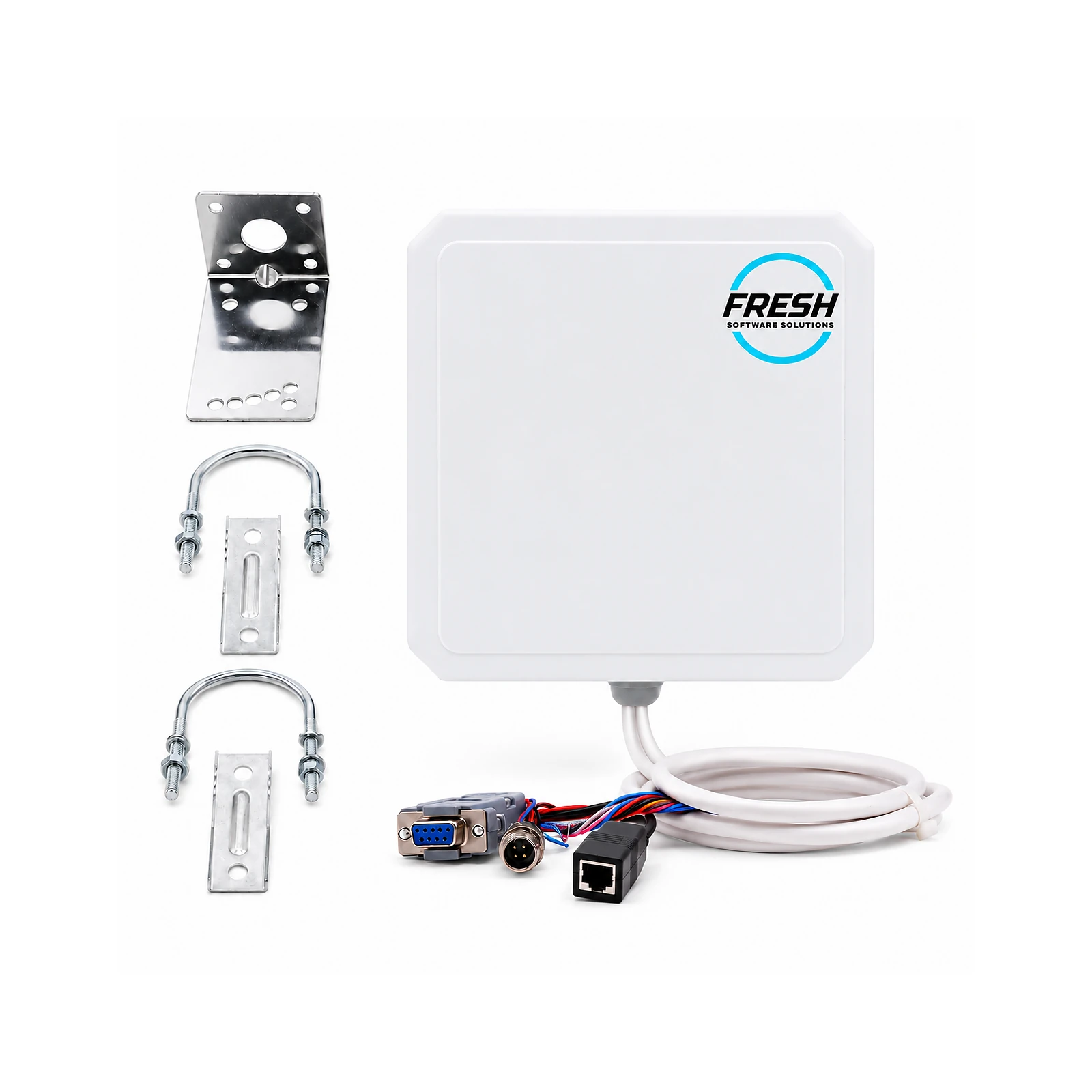

Included: F-910 reader, built-in relay, power supply, adjustable mounting bracket and two preprogrammed authorized tags.
Third-party UHF tags cannot be assumed to operate automatically. They must use compatible technology and must be properly programmed before they can activate the system.
The optional Fresh USA Windows Access Control Software supports centralized management of multiple readers, users, vehicles, tags, access events, schedules and reports. Software and reader licenses are sold separately.
Taxes, customs duties, delivery and installation are not included unless specifically stated in the order.
Description
Complete F-910 Access Control System — Preconfigured and Ready to Install
The Fresh USA F-910 is supplied as a complete preconfigured access control system with a built-in relay, power supply, adjustable mounting bracket and authorized tags programmed for the supplied reader. It can operate independently or be expanded to centralized Windows software management.
Ready-to-Use F-910 Access Control System
The Fresh USA F-910 is a ready-to-install long-range UHF access control system with an adjustable reading distance of up to 13 ft / 4 m.
The F-910 is intended primarily for commercial doors, employee entrances, turnstiles, smaller gates, garage doors, restricted operational areas and other controlled access points where a compact and adjustable reading zone is required.
When an authorized credential enters the configured reading area, the reader verifies its identification code and activates the built-in normally open dry-contact relay. The relay sends an opening or activation command to the connected access or security equipment.
System Overview
| Primary application | General commercial access control for doors, entrances, turnstiles, smaller gates and restricted access points |
|---|---|
| Reading range | Adjustable up to approximately 13 ft / 4 m depending on the credential, orientation, reader position and environment |
| Access output | Built-in normally open dry-contact relay |
| Operating options | Standalone access control or optional TCP/IP software-managed multi-reader operation |
| Standard package | Reader, relay, power supply, mounting bracket and two programmed authorized tags |
What Is Included
| F-910 reader — 1 pc. | Integrated UHF reader with an adjustable reading range up to approximately 13 ft / 4 m. |
|---|---|
| Built-in relay | Normally open dry-contact output for connection to compatible access or security equipment. |
| Power supply — 1 pc. | 110–220V AC input power supply providing the required 9V DC reader power. |
| Mounting bracket — 1 pc. | Adjustable bracket for aiming the reader toward the required credential path. |
| Authorized tags — 2 pcs. | Two compatible credentials programmed for the supplied reader before shipment. |
| Documentation | Connection diagrams, installation guidance, software manual and video demonstrations. |
Standalone and Software-Managed Operation
| Feature | Standalone Operation | Software-Managed Operation |
|---|---|---|
| Computer required | No computer required for routine access | Compatible licensed Windows computer required |
| Internet required | No Internet required for routine standalone access | Internet may be needed during installation, activation or remote support |
| Access history | Not included in the basic standalone workflow | Real-time events, searchable history and reports |
| Multiple readers | Readers may operate as independent access points | Centralized management of multiple readers and entrances |
| Multiple computers | Not applicable | Multiple licensed computers can use a shared SQL database |
| Additional licenses | Not required for basic standalone operation | One software license per computer and one reader license per connected reader |
How the Access Control System Works
- An authorized credential enters the configured reading area.
- The F-910 reads and verifies the credential identification code.
- The built-in normally open relay is activated.
- The connected access or security device receives the command.
Unauthorized, incompatible or unprogrammed credentials do not activate the standard standalone system.
Typical Connection Diagram
| Authorized UHF Credential | → | Fresh USA F-910 Reader | → | Built-In NO / COM Relay | → | Door, Gate, Turnstile, Controller or Alarm |
The relay is normally connected to the external open-button, dry-contact or access-control input of the existing equipment. Terminal names vary by equipment manufacturer.
Suitable Commercial Applications
- Commercial doors and employee entrances
- Controlled pedestrian access points
- Turnstiles
- Smaller automatic gates
- Garage doors
- Warehouses and industrial entrances
- Schools, campuses and municipal facilities
- Hotels and managed properties
- Restricted rooms and operational areas
- Alarm or security-device activation
Adding and Removing Authorized Tags
Additional compatible credentials can be added, activated, deactivated or removed using the optional Fresh USA F-02 Tag Writer / Encoder and the applicable Fresh USA programming application.
Third-party credentials must use compatible UHF technology and must be properly programmed. Compatibility should be verified before purchasing credentials in quantity.
Tag and Transponder Compatibility
Standalone Configuration
The standard standalone system is designed to operate with compatible Fresh USA credentials programmed for the supplied reader.
Software-Managed Configuration
Compatible I-PASS and E-ZPass transponders may be enrolled and used with the optional software-managed configuration after compatibility and project requirements are verified.
Optional Multi-Reader Access Control Software
The F-910 can be connected to Fresh USA Access Control Software through the local network using TCP/IP communication.
The software-managed system supports:
- Centralized management of multiple readers
- Multiple authorized Windows computers
- Shared SQL database
- Registration of people, vehicles, credentials and assets
- Real-time access events
- Entry and exit history
- Current-inside monitoring
- Search and export to Excel
- User accounts and permissions
- Access schedules and restrictions
- Manual entry or exit processing
- No mandatory cloud subscription
Software licenses and reader licenses are sold separately.
Installation Information
- Recommended maximum installation height: 7 ft / 2.2 m
- Access-device connection: normally open dry contact
- One reader is normally required for every independently controlled entrance or direction.
- Concealed installation may be possible behind suitable non-metallic materials.
- Metal, walls, nearby equipment and electrical interference may affect reading range and direction.
- Final range and reader angle must be adjusted at the installation site.
IP67 applies to the reader enclosure. The power supply, wiring, electrical connections and optional network accessories must be protected appropriately for the installation environment.
Connection Diagrams, Manuals and Videos
| Resource | Description | Open |
|---|---|---|
| Connection and Installation Manual | Reader placement, tag positioning, relay wiring, network configuration and commissioning examples. | View Manual |
| Software User Manual | Software installation, licensing, SQL database setup, reader connection, registration and reporting. | View Manual |
| Video Demonstrations | Reader setup, credential operation, connection and software demonstrations. | View Playlist |
Access Control System Video Demonstrations
Technical Specifications
| Model | Fresh USA F-910 |
|---|---|
| Primary application | General commercial access control |
| Frequency | UHF 860–960 MHz, configured for the applicable region |
| Reading range | Adjustable up to approximately 13 ft / 4 m |

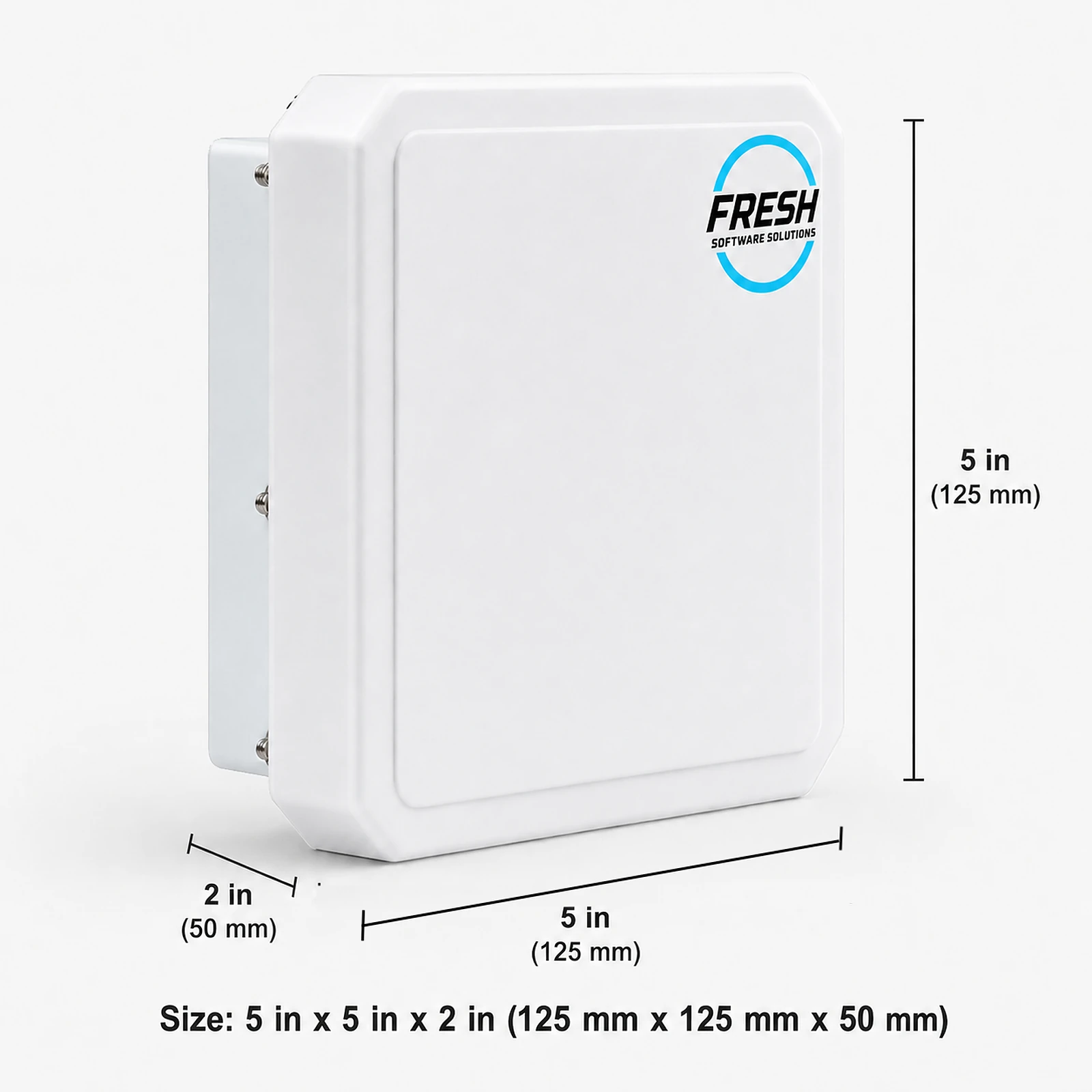

| Reader size | Approximately 5 × 5 × 2 in / 12.5 × 12.5 × 5 cm |
| Relay | Built-in normally open dry-contact relay |
| Reader power | 9V DC |
| Included power supply | 110–220V AC input to 9V DC output |
| Software communication | TCP/IP Ethernet; optional Wi-Fi or PoE configuration |
| Reader enclosure | IP67 |
| Operating temperature | Approximately −40°F to 113°F / −40°C to 45°C |
| Recommended maximum installation height | Approximately 7 ft / 2.2 m |
Frequently Asked Questions
Does the F-910 require a computer?
No computer is required for routine standalone access. A compatible Windows computer is required when centralized software management is used.
Does the F-910 require Internet access?
Internet access is not required for routine standalone operation. It may be required during software installation, activation or remote support.
Can the system be expanded later?
Yes. The reader can be connected to Fresh USA Windows software using the required communication configuration and licenses.
Can additional credentials be added?
Yes. Compatible credentials can be programmed using the optional F-02 Tag Writer / Encoder.
Can Fresh USA review the project?
Yes. Send the entrance dimensions, required range, number of access points, existing equipment model and preferred operating configuration.
Need Help Confirming the F-910 System Configuration?
Send the entrance dimensions, required reading distance, number of controlled access points, existing door or gate equipment, approximate credential quantity and required software functions.
Fresh USA will help determine the required readers, credentials, software licenses, reader licenses and connection accessories.
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | 14 × 12 × 5 in |
